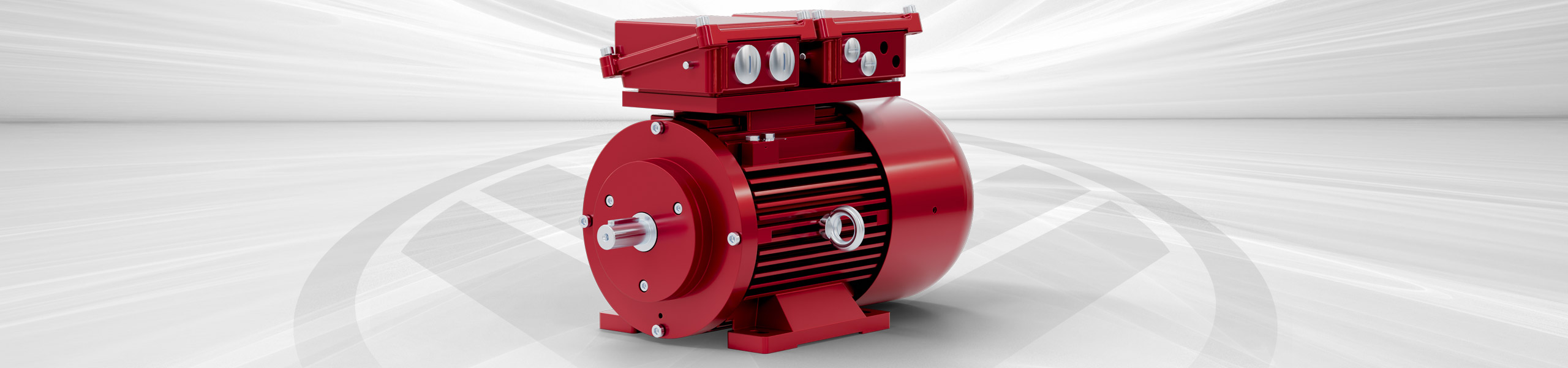

Asynchronous AC safety motors
Performance parameter range for our platform construction design:
Frame size: 90 - 355
Output: 1,5 - 315 kW
Speed: 750 - 3600 min-1
Voltage: 400 - 690 V
- For safety-critical applications such as elevators or cable cars
- With safety brakes
- Special materials and certifications available on request
- Long service life due to high-quality materials
- On-site inspections and acceptance tests with authorities or customers
Asynchronous motors for safety applications from WINKELMANN
Reliability is essential! WINKELMANN is your experienced partner for asynchronous motors designed for extreme operating conditions. These IEC asynchronous motors for safety applications are built to the highest standards of engineering, robustness, and longevity.
Each motor comes with comprehensive documentation, certified approvals, and special inspections. This guarantees compliance with both internal quality standards and customer or regulatory requirements.
With high-quality materials and flexible mechanical options, safety asynchronous motors from WINKELMANN provide maximum reliability—even under continuous operation, rapid load changes, or extreme industrial conditions.
Technical features and design characteristics
The IEC asynchronous motors cover a power range from 1.5 kW to 315 kW and are available in frame sizes 90 to 355, enabling flexible integration into a wide variety of industrial systems. Cooling options (IC 411, IC 416, or custom) ensure optimal thermal management even under high loads and challenging conditions.
Protection classes from IP 44 to IP 66 guarantee safe operation under harsh industrial environments with dust, moisture, or splashing water. Custom mechanical designs, safety accessories such as brakes, and sensors can be integrated as needed.
This modular and adaptable construction allows these safety asynchronous motors to be used in new machine concepts or as replacements for existing drive systems. In-house acceptance testing ensures maximum reliability and certified motor safety.
Additional technical data:
Application examples
AI Data centers
AC motors stand out in data centers and AI data centers due to their high energy efficiency, robust design, and reliable continuous operation. They are ideal for cooling pumps and ventilation systems and ensure a stable, cost-effective, and low-maintenance drive solution.
Cranes
Crane systems require drives with high torque and precise control. AC motors combined with frequency inverters provide smooth starting behavior, accurate speed regulation, and reliable operation during lifting and positioning tasks.
Pump systems
AC motors are ideal for pump systems due to their reliable performance, high efficiency, and stable operation. In combination with a frequency inverter, speed and flow rate can be precisely controlled to meet changing process conditions
