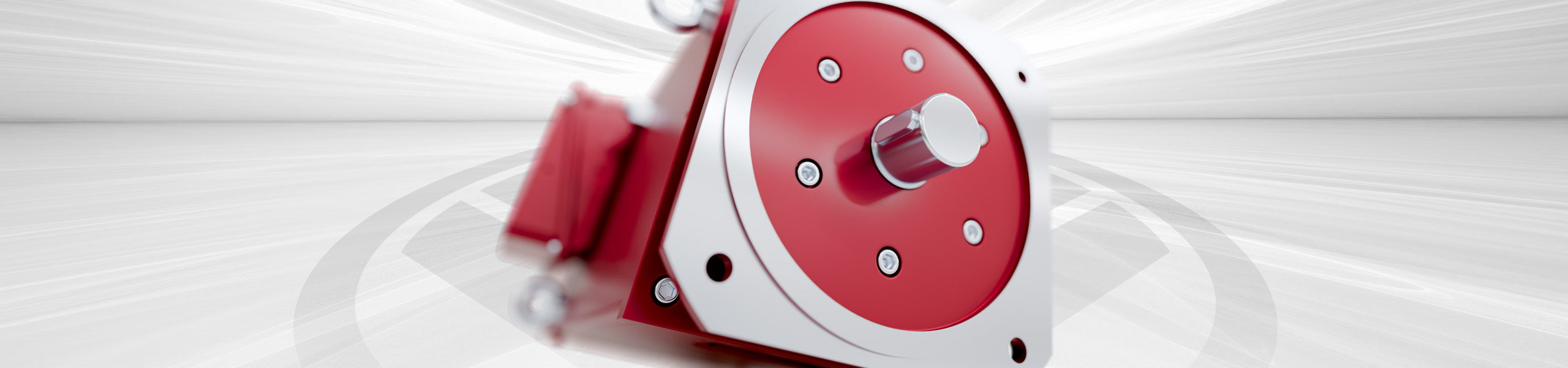

AC motors from WINKELMANN

The AC motors from WINKELMANN represent powerful, robust and durable drive solutions for industrial applications. As an experienced manufacturer, WINKELMANN develops and produces high-quality AC motors for demanding applications across a wide range of industries – from power generation and mining to rail vehicles, pump systems, conveyor technology and industrial production plants.

An AC motor is one of the most widely used electric drive systems in modern industry. Thanks to its simple yet highly reliable design, this type of motor is particularly suitable for continuous operation. Motors AC are known for their reliability, long service life and efficient energy consumption, making them an essential component in many industrial machines and systems.

Typical applications for WINKELMANN electric AC motor solutions include pump systems, conveyor technology, compressors, ventilation and cooling systems as well as industrial production equipment. Especially in environments where reliable and energy-efficient industrial drives are required, an AC motor offers significant advantages.

Another benefit of modern AC motors is their flexible speed control. When combined with a frequency converter, the speed of an electric AC motor can be precisely adjusted to different operating conditions. This allows machines to operate more efficiently, reduces mechanical stress and improves overall process control.

To fully understand the performance of this drive technology, it is useful to take a closer look at the AC motor design and the AC motor working principle, which explain the physical principles behind this proven motor technology.


AC motor structure

The design of an AC motor plays a key role in determining its performance, efficiency and service life. Although different configurations exist, most motors AC share the same fundamental components that enable the reliable conversion of electrical energy into mechanical motion.

At the center of an electric AC motor are two main components: the stationary part, known as the stator, and the rotating part, called the rotor. The stator contains electrical windings that are supplied with alternating current. This power supply generates a rotating magnetic field, which forms the basis for the motor’s rotational movement.

The rotor is located inside the stator and is connected directly to the motor shaft. The rotating magnetic field of the stator induces electrical currents in the rotor, creating its own magnetic field. The interaction between these two magnetic fields generates the torque that drives the AC motor.

One major advantage of this design is that many AC motors operate without brushes or commutators. As a result, mechanical wear is significantly reduced, enabling long service life and low maintenance requirements.

In addition to the electrical components, mechanical elements such as high-quality bearings, robust motor housings and efficient cooling systems also play an important role. They ensure smooth operation, protect the motor from dust, moisture and mechanical stress, and extend the lifespan of the entire drive system.

Thanks to this well-engineered design, motors AC can be adapted to a wide range of performance requirements and industrial operating conditions.

AC motor operation principle

The AC motor working principle is based on the physical concept of a rotating electromagnetic field. When alternating current flows through the stator windings, a magnetic field is created that continuously rotates around the stator.

This rotating field interacts with the rotor inside the motor. Through electromagnetic induction, electrical currents are generated in the rotor, which in turn create their own magnetic field. The interaction between the stator field and the rotor field produces the torque that drives the rotor shaft and converts electrical energy into mechanical energy.

The speed of an AC motor depends primarily on the frequency of the electrical power supply. This is why frequency converters play an important role in modern industrial drive systems. By adjusting the frequency and voltage of the power supply, the speed of an electric AC motor can be precisely controlled and adapted to the requirements of the application.

This combination of AC motor technology and variable speed control provides significant advantages: machines can start smoothly, energy consumption is reduced and industrial processes can be controlled more precisely.

For these reasons, motors AC are among the most important electric drive technologies in modern industry and are used in countless industrial machines and production systems.



Modern adaptations and custom solutions

A key advantage of modern AC motors is their high level of flexibility thanks to modular design. WINKELMANN offers electric AC motor solutions that can be individually configured in terms of voltage, power rating, speed range and mechanical design.

In addition to standard solutions, numerous special configurations are available. These include different cooling methods, protection classes, customized shaft designs or reinforced bearings for demanding mechanical loads. This allows AC motors to be precisely adapted to the requirements of complex machines and industrial systems.

Custom engineering solutions also allow the integration of additional components such as braking systems, specialized ventilation concepts or other mechanical elements. As a result, every electric AC motor can be tailored exactly to the application.

This flexibility makes WINKELMANN motors AC a reliable solution for industrial projects that require high performance, energy efficiency and long-lasting drive technology.
