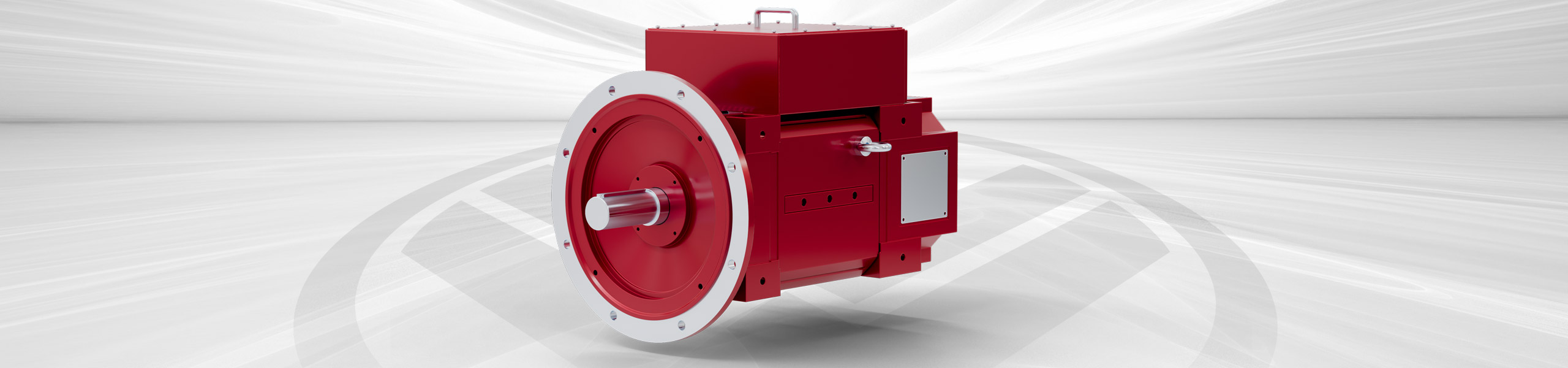

Compact DC motors
Performance parameter range for our platform construction design:
Frame size: 80 - 315
Output: 1,5 - 500 kW
Speed: bis 5.000 min-1
Voltage: 110 V - 500 V
- High power density
- Innovative internal cooling (IC 06, IC 37 or IC 01)
- Custom voltage, speed and power ranges
- Optimized for highly dynamic applications
- Robust design for demanding industrial environments
Compact DC motors – power in a small package
Compact DC motors from WINKELMANN are specifically designed for industrial applications where installation space is limited but high performance is required. As a modern dc motor used in industry, they combine high power density with a space-saving, well-engineered design. This results in high-performance drive solutions that operate reliably and efficiently even under demanding conditions.
Our compact DC motors integrate robust mechanics, optimized electromagnetic design, and modern cooling concepts. They are engineered for continuous, low-maintenance operation and provides consistent torque and speed stability even under heavy loads. Especially in industrial sectors where precision, dynamics, and process reliability are crucial, these motors excel. Typical applications include power plants, industrial cranes, pump systems, rail vehicles, test benches, and mining equipment.
Thanks to flexible electrical configurations, voltage, speed, and power ranges can be precisely adapted to each application. This enables seamless integration into existing systems. A WINKELMANN dc motor industrie can serve both as a replacement in existing installations and as an optimally tuned drive for new systems. In highly dynamic processes with rapid load changes or precise control requirements, a high-performance DC motor provides an economical and technically compelling solution.
Technical features and design characteristics
Our high-performance compact DC motors feature innovative internal cooling systems such as IC 06, IC 37, or IC 01. These allow for a particularly compact design without any loss of power. A compact DC motor can thus deliver high continuous output even in confined spaces while maintaining thermal stability.
Depending on the application, the motors are available with protection classes from IP 23 to IP 55. This makes them suitable for both clean production environments and dusty or humid industrial settings. As a dc motor used in industry, they meet the diverse requirements of modern production and material handling systems.
Optionally, the motors can be equipped with compensating windings to enhance efficiency in highly dynamic applications. Particularly in test benches, rapid acceleration and braking operations, or high-precision control processes, this design ensures improved current distribution and optimized torque characteristics. A high-performance DC motor thus offers not only high dynamics but also exceptionally smooth and stable operation.
Additionally, mechanical adaptations such as different mounting options, special fans, couplings, or gearboxes allow project-specific integration into your system. Every dc motor industrie can be precisely tailored to individual requirements. Thanks to high-quality components, a robust housing design, and sophisticated cooling technology, the compact DC motors are especially durable, energy-efficient, and reliable in daily industrial use.
Additional technical data:
Application examples
Power plants
In power plants, DC motors are often used as emergency DC drives. With high starting torque, stable speed performance, and robust construction, they reliably start even during power outages, ensuring the safe operation of critical systems.
Cranes
Crane systems require drives with high torque and precise control. DC motors are particularly suitable, providing smooth startup and stable speed to execute controlled movements even in challenging operational conditions.
Rail vehicles
In rail vehicles, electric motors are primarily used in various auxiliary drives, such as compressors and ventilation systems. Their compact design, high robustness, and reliable performance ensure safe operation even under vibration, temperature fluctuations, and limited installation space.
Test benches
On test stands, DC motors excel in precise control, dynamic responsiveness, and short-term overload capability. They allow reproducible test conditions and accurate simulation of torque and speed profiles.
Oil and gas industry
Industrial DC motors impress with compact design, consistent power output, and stable speed. Their high torque makes them a trusted solution for safety-critical and demanding processes. In addition, they have numerous international explosion protection certifications for use in hazardous areas.
Pump systems
DC motors are ideal for pump applications, offering high starting torque, reliable startup, and consistent speed. These features ensure stable flow rates and dependable operation, even under challenging conditions.
