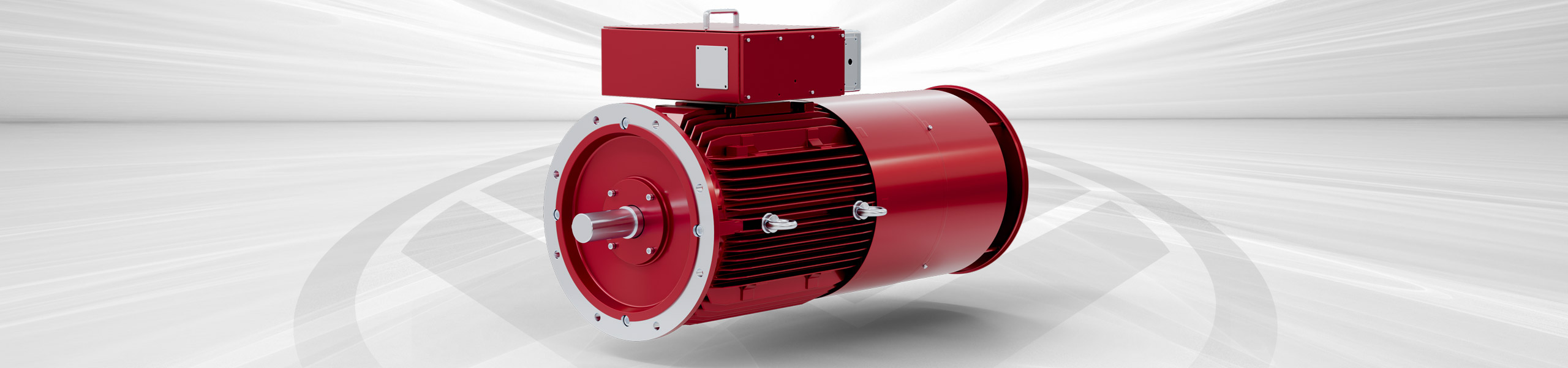

IEC DC motors
Performance parameter range for our platform construction design:
Frame size: 71 - 355
Output: 0,25 - 150 kW
Speed: bis 3.600 min-1
Voltage: 110 V - 440 V
- Full performance in under 2 seconds
- Large terminal box for high currents
- Flexible standard combinations according to NEMA, MG1 or IEC 60034
- High torque reserve with up to 3× overload capacity
- Optimization matched to the pump characteristic curve
IEC DC motors – powerful, durable, and versatile
IEC motors from WINKELMANN provide robust, standard-compliant, and cost-effective drive solutions for industrial applications. Designed as industrial DC motors, they meet the highest requirements for reliability, performance, and continuous operation. They are ideal wherever consistent performance, flexible integration, and long service life are critical.
Thanks to international standards like IEC, these motors provide maximum planning security for machine builders and plant operators. Particularly in challenging industrial environments with high humidity, dust, or aggressive media, these DC motors impress with their robust construction and high protection ratings.
Cooling is provided either via speed-dependent self-surface cooling or speed-independent through a powerful external fan, allowing the motor to be thermally adapted to varying operating conditions. Optional features include brakes, speed sensors, gearboxes, or monitoring systems. Both indoor and outdoor installations are possible, making these IEC motors highly flexible.
Technical features and design characteristics
The design of our IEC motors is focused on durability and mechanical stability. High-quality materials, precise manufacturing, and well-thought-out construction ensure reliable operation even under demanding load conditions.
Thanks to insulation class H (according to F), the motors have high thermal reserves. Even under elevated ambient temperatures or temporary overload, they remain fully operational and safe. This thermal robustness not only increases service life but also provides added safety in industrial environments.
Another key advantage is guaranteed vibration level B, ensuring smooth, low-vibration operation. This directly contributes to longer bearing life. For industrial DC motors operating continuously, low vibrations significantly reduce maintenance costs and unplanned downtime.
Especially for motors used in pumps and test benches, WINKELMANN offers precise adaptation of the motor characteristic curve to the specific application. Optimizing according to the pump curve ensures energy-efficient operation with stable torque. Additionally, starting resistors are simulated and precisely designed to guarantee an optimal IEC motor pump connection. This customization makes IEC motors a technically and economically convincing solution for demanding industrial processes.
Motors according to NEMA MG1 – Globally compatible
In addition to the IEC-compliant version, our IEC DC motors are also available according to NEMA MG1. The modular design allows a flexible combination of both standard systems. This results in industrial DC motors that can be used seamlessly in both European and North American markets.
This standard flexibility is particularly advantageous for internationally operating companies, offering a unified drive solution for multiple locations. IEC motors therefore provide not only technical performance but also global compatibility.
Additional technical data:
Application examples
Power plants
In power plants, DC motors are often used as emergency DC drives. With high starting torque, stable speed performance, and robust construction, they reliably start even during power outages, ensuring the safe operation of critical systems.
AI Data centers
DC motors offer high starting torque and are particularly quick to become operational. This makes them ideal for emergency systems in data centers, where they reliably and without delay activate cooling and safety equipment.
Rail vehicles
In rail vehicles, electric motors are primarily used in various auxiliary drives, such as compressors and ventilation systems. Their compact design, high robustness, and reliable performance ensure safe operation even under vibration, temperature fluctuations, and limited installation space.
Test benches
On test stands, DC motors excel in precise control, dynamic responsiveness, and short-term overload capability. They allow reproducible test conditions and accurate simulation of torque and speed profiles.
Mining
In mining applications, reliable, high-performance drives are essential. DC motors offer high torque at low speeds, compact design, and long-term operational reliability, even in extreme environmental conditions.
Oil and gas industry
Industrial DC motors impress with compact design, consistent power output, and stable speed. Their high torque makes them a trusted solution for safety-critical and demanding processes. In addition, they have numerous international explosion protection certifications for use in hazardous areas.
Pump systems
DC motors are ideal for pump applications, offering high starting torque, reliable startup, and consistent speed. These features ensure stable flow rates and dependable operation, even under challenging conditions.
Cranes
Crane systems require drives with high torque and precise control. DC motors are particularly suitable, providing smooth startup and stable speed to execute controlled movements even in challenging operational conditions.
